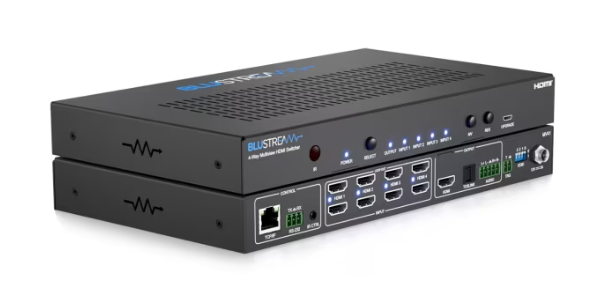

Our MV41 is an advanced 4x1 HDMI multi-view switcher. The MV41 allows up to 4x HDMI2.0 sources to be output to a single display at the same time, with pre-defined and customisable video layouts, and seamless switching. The MV41 also supports HDMI loop-through for all HDMI inputs allowing cascading of original source signals for further distribution.
The MV41 features 2ch PCM and Optical S/PDIF audio breakout, with third-party control achievable from the web-GUI, TCP/IP, RS-232, IR remote control, of from the front panel buttons.
The multiple configuration and connectivity options make the MV41 suitable for both residential and commercial installations
• Advanced 4x HDMI input switch with multi-view HDMI output
• Features 4x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
• Supports video down-scaling and HDR to SDR conversion on HDMI multiview output
• Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
• Supplied with Blustream 5V IR receiver and remote control
• 3rd party drivers available for all major control brands
• HDCP2.3 compliant with advanced EDID management
