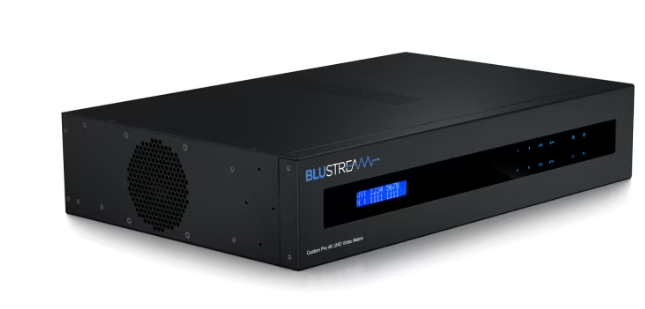

PRO88HBT70

8x8 HDBaseT CSC Matrix - 70m

Available Colours
Black matt
  • 8 x 8 HDBT Matrix - 70m
  • HDMI 2.0 4K 60Hz 4:2:0 HDCP 2.0
  • Bi-directional IR; PoC up to 70m
  • RRP: $7,232.00

Our 70m Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO88HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI; Bi-directional IR; PoC up to lengths of 70m over a single CAT cable (4K HDR up to 40m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. The Matrix also provides advanced features including 8 x simultaneous HDMI outputs; audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.
