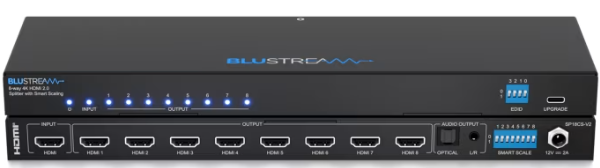

The SP18CS-V2 4K HDMI 2.0 splitter enables reliable distribution of a single HDMI source to up to eight simultaneous displays, while also providing both optical (S/PDIF) and analogue audio breakout for added system flexibility.
Supporting full HDMI 2.0 and HDCP 2.2 compliance, the unit delivers video resolutions up to 4K 60Hz 4:4:4, with intelligent automatic downscaling available on each output to ensure seamless compatibility across mixed-resolution display environments.
• Features 1x HDMI input that is replicated to 8x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• Advanced EDID management
• HDCP 2.2 Support
