The AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system. The AD11AU can add a delay of up to 1 second selectable in 15 increments and has a volume adjustment of -75dB to 0dB.
Key Features:
- In-line 2 channel analogue audio delay with line-level volume control
- Supports 48KHz / 24-bit sample rates
- Selectable audio delay from 50-1,000ms:
- 0-500ms in steps of 50ms
- 500-1,000ms in step is of 100ms
- Adjustable line level volume control from -75dB to 0dB
Specifications:

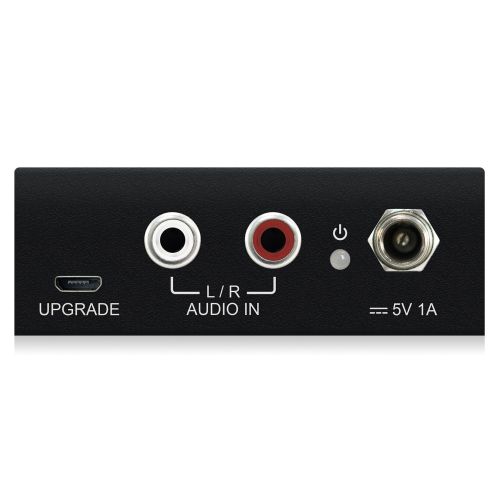

- Audio Input Connectors: 2 x RCA analogue left/right

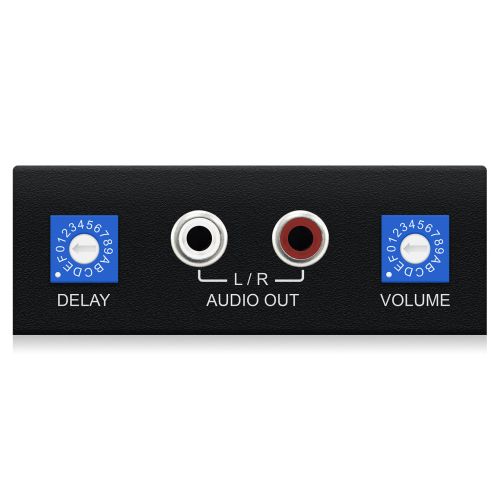

- Audio Output Connectors: 2 x RCA analogue left/right
- Audio Delay: Rotation switch
- Volume Control: Rotation switch
- Casing Dimensions (W x H x D): 70mm x 25mm x 73mm
- Shipping Weight: 0.4kg
- Operating Temperature: -5°C to +55°C
- Storage Temperature : -25°C to +70°C
- Power Supply: 5V/1A DC
