Our MX44VW 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.
The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.
Key Features:
- Features 3 operational modes:
- 4x4 Seamless Switching Matrix (HDMI or VGA inputs)
- Video Wall (2x2, 4x1 or 1x4 configuration)
- Multi-Viewer mode with preset layouts

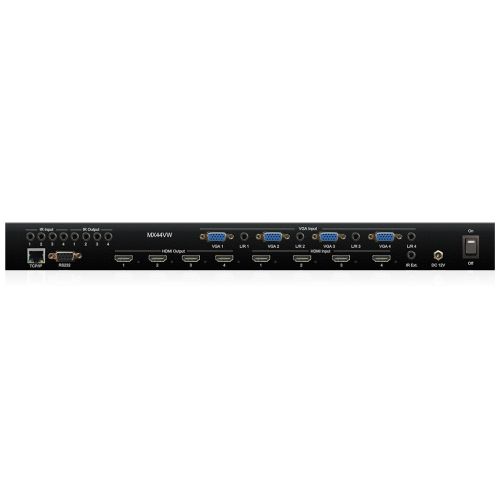

- Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio
- instantaneous seamless video switching (Matrix and Video Wall modes)
- Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
- HDMI output resolution fixed to 1080p @60Hz
- Supports HDMI 2ch PCM audio only
- Discreet IR routing
- Supplied with Blustream IR receivers and emitters

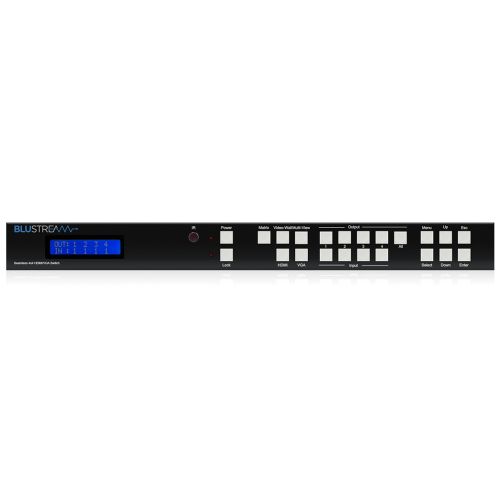

- Control via front panel, IR, RS-232, TCP/IP and the Blustream Matrix App
- 3rd party control drivers available for all major home control brands
- Advanced EDID management
- HDCP1.4 compliant
