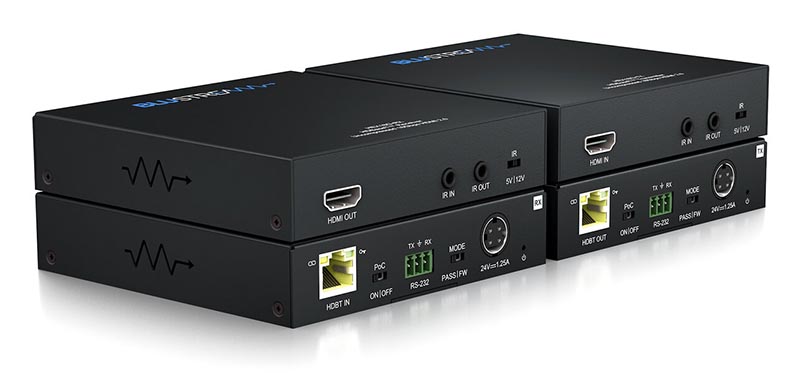

The HEX18G-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology. The HEX18G-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas. The HEX18G-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable.
Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit for bit 4K HDMI video and audio over a single CAT6A cable
Supports HDMI 2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
Supports HDMI video distribution up to 100m*
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Bi-directional IR & RS-232 pass through
Supplied with Blustream IR receiver and emitter
Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
HEX18G-TX
Video Input Connectors: 1x HDMI Type A, female
Video Output Connectors: 1x HDBaseT™ RJ45 connector
IR Input ports: 1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm mono jack
RS-232 serial port: 1x 3-pin Phoenix connector
Power Supply: 1x 24V/1.25A DC
HEX18G-RX
Video Input Connectors: 1x HDBaseT™ RJ45 connector
Video Output Connectors: 1x HDMI Type A, female
IR Input ports: 1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm mono jack
RS-232 serial port: 1x 3-pin Phoenix connector
Power Supply: 1x 24V/1.25A DC
Casing Dimensions (W x D x H ): 95mm x 116mm x 24mm (TX and RX)
Shipping Weight (Kit): 1.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Mounting kits included
Power Supply: 1x 24V/1.25A DC
*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of F/UTP CAT6A cabling.
