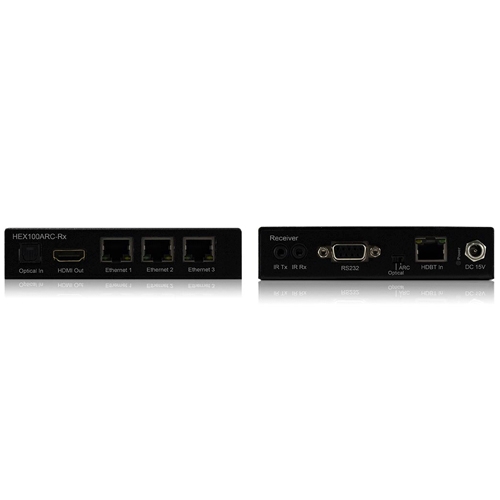

Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX100ARC-RX is an industry leading 4K HDBaseT™ receiver delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable (4K to 70m). The HEX100ARC-RX also provides enhanced features including ARC and Audio breakout, RS-232 pass through and an integrated 3-way Ethernet switch.
Key Features:
- Receives a HDBaseT™ signal from a compatible HDBaseT™ transmitter from a distance of up to 100m over single CAT cable
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs (when used with compatible Blustream transmitter / matrix)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Integrated ethernet switch (LAN Serving) when used with Blustream HEX100ARC-RX receiver or platinum matrix solution. HEX100ARC-RX features 3-port Ethernet switch
- Supports bi-directional RS-232 pass through
- Supports bi-directional IR from all input and output locations
- Supports bi-directional PoH (Power over HDBaseT™) to power unit from compatible Blustream Matrix or Transmitter
- HDCP compliant
