The HEX11WP-TX HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0). The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI at 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
- Bi-directional RS-232 pass through
- Supports IR pass-through to HDBaseT™ Receiver / Matrix device
- Compatible with all Blustream HDBaseT™ Receiver / Matrix products *
- Magnetic faceplate surround allowing both UK & EU backbox compatibility
- HDCP 2.2 support
* Technical performance is subject to the features supported on the connected HDBaseT™ device
Specifications:

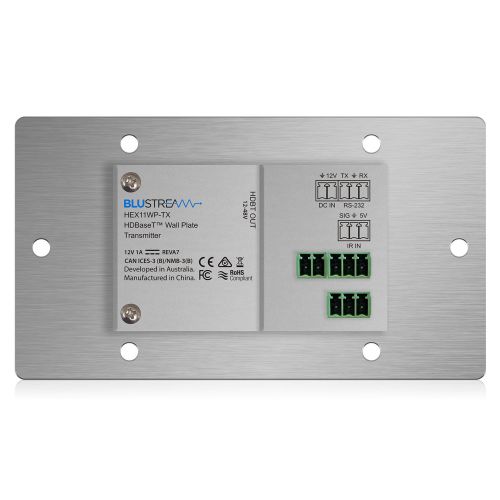

- Video Input Connectors: 1 x HDMI Type A, 19-pin, female
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector
- RS-232 serial port: 1 x 3-Pin Phoenix connector
- IR Input port: 1 x 3-Pin Phoenix connector
- Local power input: 1 x 2-Pin Phoenix connector
- Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
- Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
- Backbox Mounting Depth: 40mm (minimum) - not supplied
- Shipping Weight:
- Operating Temperature: -5°C to +55°C
- Storage Temperature : -25°C to +70°C
- Power Supply: 12V/1A DC
