The HEX31WP-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).
The HEX31WP-TX features both manual or automated source selection and includes display on/off control via CEC, RS-232 and IR (via compatible HDBaseT™ Receivers / Matrix). The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features:

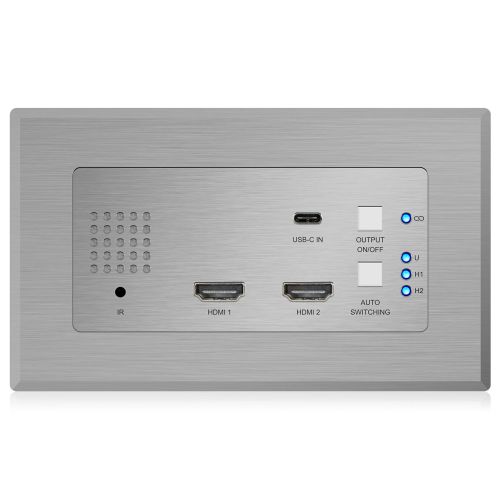

- Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI at 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Input selection via front panel, IR or RS-232
- Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ Receiver

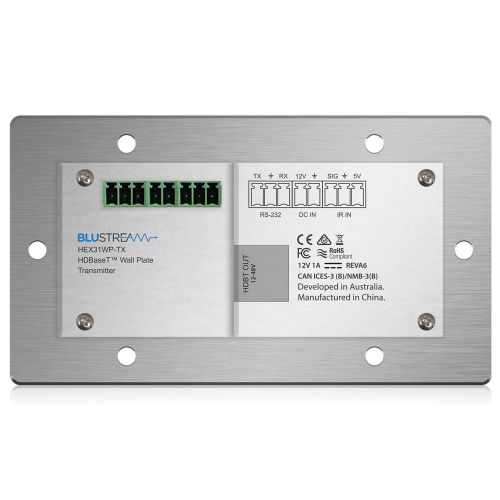

- Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
- Bi-directional RS-232 pass through
- Supports IR pass-through to HDBaseT™ device
- Compatible with all Blustream HDBaseT™ Receiver / Matrix products *
- Magnetic faceplate surround allowing both UK & EU back box compatibility
- HDCP 2.2 support
* Technical performance is subject to the features supported on the connected HDBaseT™ device
Specifications:
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female
- Video Output Connectors: 2 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1 x Optical (Toslink), 2x RCA analogue left / right
- EDID: 4-PIN DIP switch
- Resolution: 4-PIN DIP switch
- Product upgrade: 2 x Micro USB female
- Dimensions (W x H x D): 127mm x 23mm x 104mm, without feet
- Shipping Weight: 1.0kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Power Supply: 5V/3A DC
